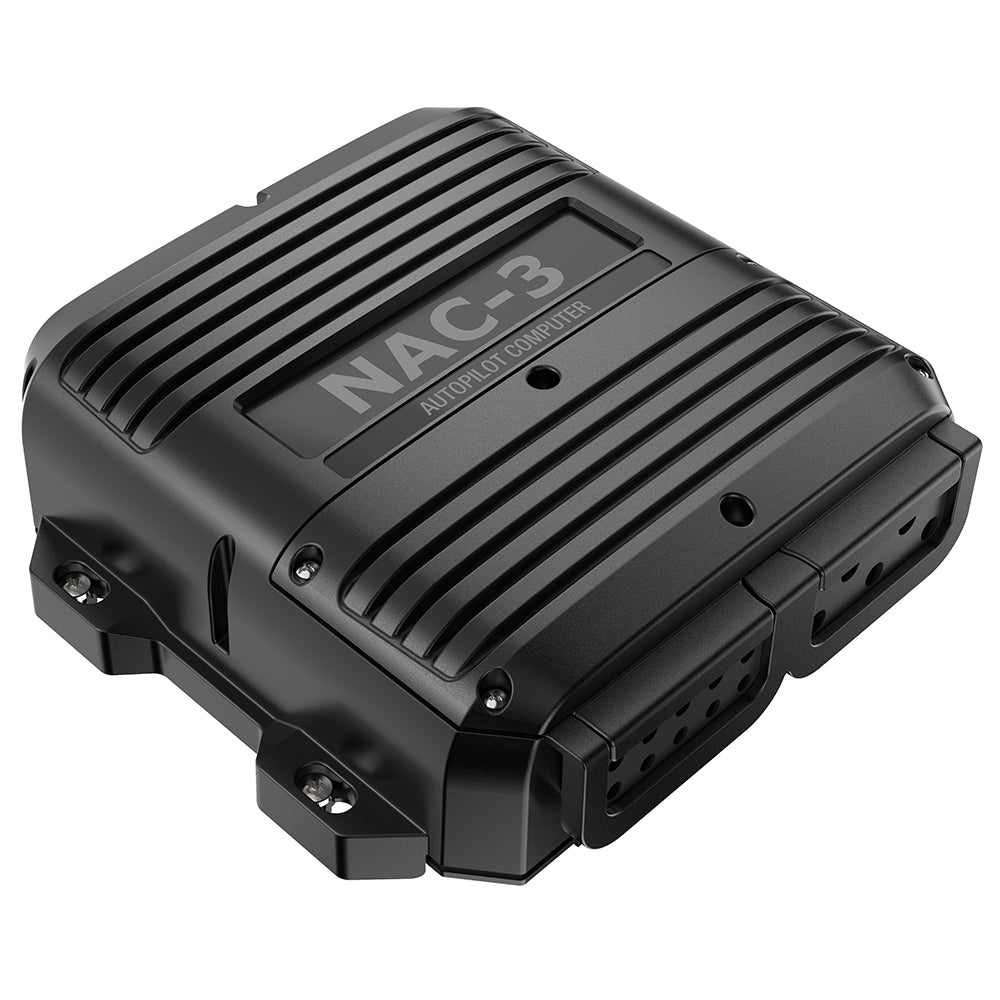

Simrad NAC-3 High Current Course Computer [000-13250-001]

NAC-3 High Current Course Computer

The NAC-3 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 Amps continuous/50 Amps peak).

Features:

• Reliable autopilot performance based on Simrad Continuum™ steering technology

• Recommended for boats above 10M (33') in length

• High-current output of 30 Amps continuous, 50 Amps peak

• Clutch output (3 Amps maximum)

• Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves

• Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats

• Supports Simrad RF25 and RF300 rudder feedback units

• NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays

• NMEA 0183® input

Specifications:

• Type: Parts
• Box Dimensions: 5"H x 9"W x 10"L WT: 3.2 lbs
• UPC: 9420024154397
